Upload images using RICOH360 Cloud



An important update has been released.

Please check the details and update the camera firmware.

https://topics.theta360.com/en/news/2023-06-19/



The following steps can be used to upload images to the cloud using the THETA X, Z1 and RICOH360 RICOH360 Cloud.

  • Client mode is required to use RICOH360 Cloud
  • The RICOH360 Cloud plug-in must be installed on your RICOH THETA X, Z1. If you have not done so, please see: Registering for RICOH360 Cloud
  • Images stored in the RICOH THETA X, Z1 are automatically uploaded to the cloud once RICOH360 Cloud is configured and active


Turning on the client mode

THETA X

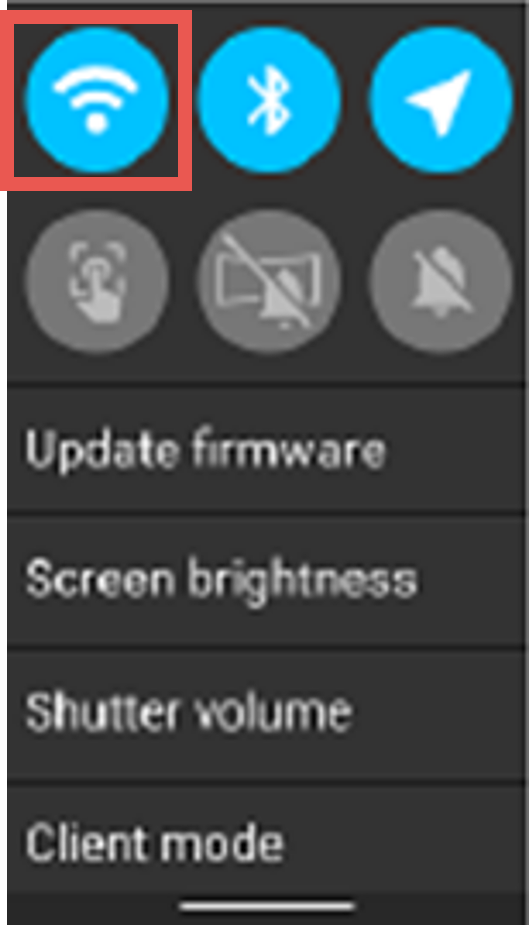

  • Swipe the RICOH THETA X display from top to bottom
  • Tap Client Mode
  • Tap the toggle panel_toggle_off.png to on panel_toggle_on.png
  • When client mode is on, panel_icon_wireless_cl.png will appear at the top of the screen.

THETA Z1

  • Press the wireless button on the side of the RICOH THETA Z1 to switch the wireless LAN function to client mode.
  • hc_thetaz1_wifi_cl1.gifhc_thetaz1_wifi_cl2.gif is displayed on the display panel


Connect the RICOH THETA X to a wireless router

  1. Swipe down on the shooting screen of the THETA to display the camera setting screen.
  2. Tap panel_set_wifi_off_s.png to turn on Wi-Fi
  3. Scroll down and  tap Client Mode
  4. Tap on your Wi-Fi network

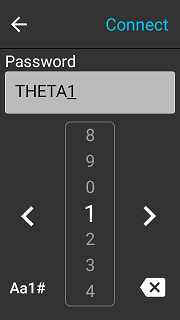

  5. Enter your wireless network password
    • Each time Aa1# is tapped, the character type switches between uppercase letters, lowercase letters, numbers, and symbols.
    • Scroll up or down to select a character, and then tap panel_password_right.png to enter the character and move the cursor to the next character.
    • Tap panel_password_left.png to move the cursor to the previous character.
    • Tap panel_password_delete.png to delete the character at the cursor position.
    • Tap icon_reverse.png to cancel the password entry and return to the wireless device list screen. The entered password is cleared.
    • When entering the last character of the password, you do not need to tap panel_password_right.png.
  6. Tap Connect.
  7. Tap icon_reverse.png to return to the THETA setting screen.
