The Wi-Fi connection between the RICOH THETA and mobile devices is available within the RICOH360 Tours app.

Within the RICOH360 Tours app, you must first register your THETA camera. Once registered, you will connect to your mobile device from within the RICOH360 Tours app.

How to check and update the THETA firmware

It is recommended that you always use the latest version of the RICOH THETA firmware.
For instructions on how to check and update the firmware, please refer to the instruction manual at the link below.
https://help.ricoh360.com/hc/en-us/articles/4410295024147
*Make sure that RICOH THETA is fully charged.

Registering your RICOH THETA camera

Note: If a dialog box appears during the registration or shooting steps below asking for permission to connect to a photo, network, or location services, click OK. This is necessary for the RICOH360 Tours app to work properly.

1. Tap " " at the bottom of the screen.
2. Tap Register THETA.
3. Select the THETA model you want to register.
4. Press the power button on the THETA to turn it on

The steps below vary depending on the model other than THETA X.

◆For models other than RICOH THETA X

1. Press the wireless button on the THETA to turn on the wireless function (the wireless light will flash)
2. Enter the serial number and password, then tap Next.
3. Tap Register.
4. When the connection dialog box appears, tap OK or Connect.
5. When the dialog box indicating that the connection with THETA is complete appears, tap OK.

This completes the THETA registration and you will be taken to the shooting mode.

◆RICOH THETA X

1. Press the wireless button on the THETA to turn on the wireless function

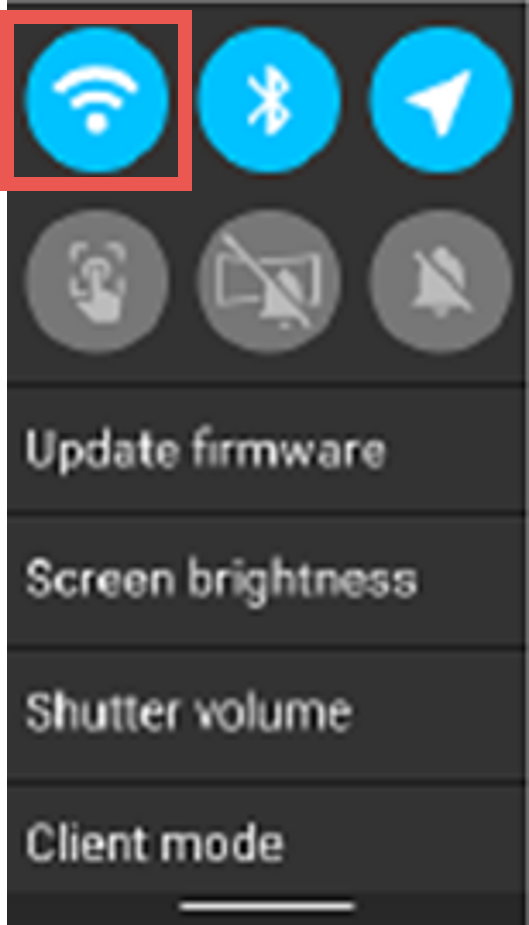

   *Swipe down from the top of the display panel and tap the wireless icon in the upper left corner.

2. Tap Register. The connection procedure screen will open.
3. Swipe from right to left on the screen. On the last page, tap Register.
4. When the connection dialog box appears, tap OK or Connect .

This completes the THETA registration and the camera will switch to shooting mode.

If you are having trouble with your Wi-Fi connection, please refer to [this page] .

Taking Photos once your camera is registered

Navigate back to your Tours screen and create or select your tour. If asked to access your device's location or photos, tap ALLOW. This is required for the app to work correctly.

1. Tap New Tour and enter the tour name, etc., and then tap Done.
2. Be sure your camera is powered on and the Wi-Fi symbol is displayed
3. Tap RICOH THETA on the add photos screen
4. If your are on an Android device, skip to step 5 below
   1. Tap the serial number under the Serial No. field for the THETA you would like to connect to
   2. Tap Connect
   3. Tap Join
5. You should now see a preview of your location. Tap the shutter button to take your photo.

If the Wi-Fi connection does not succeed with the above procedure

Please refer to "When Making a Connection by Entering the SSID" in the following link (THETA User Manual) and perform the Wi-Fi connection operation.
Click the name of the model you are using.：X / Z1 / V / SC2 / SC / S
